Have you ever faced delays, unexpected costs, or quality issues when moving your brilliant design into production? In my two decades at the forefront of electronics manufacturing, I've seen countless projects hit frustrating snags during assembly—snags that were entirely preventable. The bridge between a perfect design and a flawlessly manufactured product is built on PCB Fabrication and assembly optimization. So, how do we ensure that bridge is strong?
What Are the Key Design Factors Impacting Assembly Efficiency
The choices made on your CAD screen directly dictate the ease, speed, and cost of the assembly process. Ignoring Design for Assembly (DFA) principles is the most common mistake I see. It often leads to a painful cycle of redesigns and delays. The goal is to create a design that is not only functional but also inherently easy for machines and technicians to assemble correctly the first time. This is where a partnership with a PCB Fabrication expert like us at Hayner becomes invaluable, as we integrate these principles from the very beginning.
How Do Component Placement and Orientation Affect Your Bottom Line
Strategic component placement is the single greatest factor in optimizing assembly efficiency. A disorganized board layout is a recipe for a slow and error-prone production line.
Group Components by Value: Place all resistors of the same value together. This allows pick-and-place machines to use one feeder and one nozzle type for multiple components, drastically reducing changeover time.
Standardize Component Orientations: Ensure all polarized components (diodes, ICs, capacitors) face the same direction. This simplifies the automated assembly process and reduces the chance of human error during inspection.
Maintain Adequate Spacing: Components placed too close together can cause issues for soldering nozzles and inspection cameras. Sufficient clearance prevents tombstoning and solder bridging.
Why is Your PCB Panelization Strategy Critical for Speed
Panelization is about more than just fitting multiple boards on a single sheet; it's about creating a robust array that moves smoothly through the assembly line. An optimal panel design maximizes throughput and minimizes handling.
| Panelization Feature | Inefficient Design | Hayner Recommended Optimized Design | Benefit |
|---|---|---|---|
| Panel Size | Irregular, non-standard size | Standard size matching our assembly line equipment | Eliminates custom fixture costs and speeds up loading |
| Breakaway Tabs | Too few, too thick | Numerous, strategically placed tabs with perforated mouse bites | Prevents board warping during solder reflow and allows easy depanelization |
| Fiducial Marks | Missing or poorly placed | Global and local fiducials with a clear copper-free margin | Provides precise automated board alignment for accurate component placement |

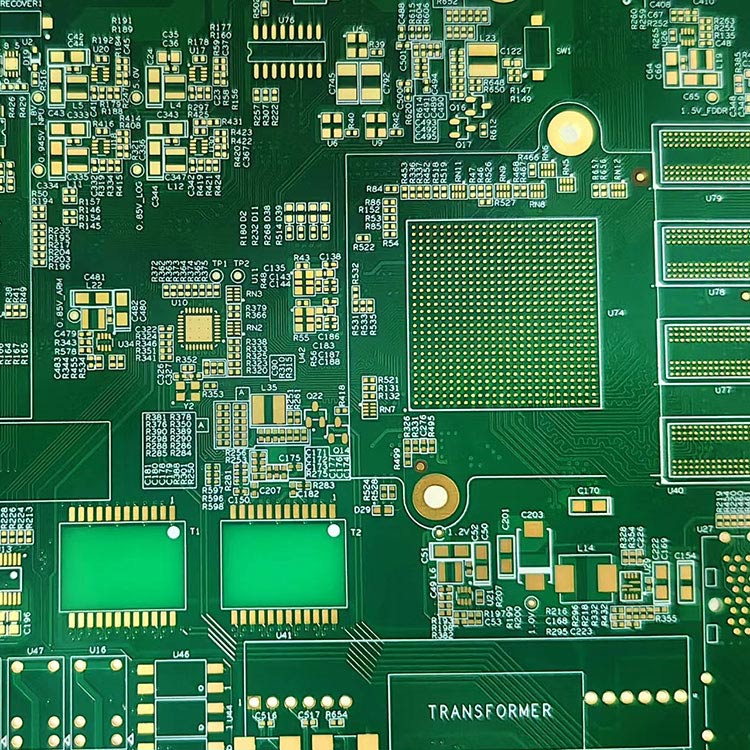

Which Design for Manufacturing (DFM) Rules Can Prevent Costly Errors
DFM is the practice of designing your board to avoid inherent PCB Fabrication and assembly problems. At Hayner, we run every design through a rigorous DFM check based on our specific capabilities. Here are key rules we enforce to protect your project:
Annular Ring Size: We require a minimum annular ring of 0.05mm to prevent drill breakout and ensure a reliable solder connection for through-hole components.
Solder Mask Solder Bridge Prevention: Our process specifies a solder mask dam between IC pads that are less than 0.25mm apart, eliminating the risk of shorts.
Silkscreen Legibility: We recommend a minimum text height of 0.8mm to ensure part designators and polarity markers are clear for our technicians, reducing assembly errors.
Adhering to these rules from the outset is what makes the Hayner PCB Fabrication process so reliable. It transforms your design from a concept into a manufacturable product.
How Can Hayner's Product Parameters Streamline Your Process
When you choose Hayner, you are not just ordering a board; you are accessing a streamlined ecosystem built for efficiency. Our core PCB Fabrication specifications are engineered to work in perfect harmony with our assembly services.
Layer Count: 1 to 32 layers
Base Material: FR-4 Standard, High-Tg, Halogen-Free, Rogers, ISOLA
Minimum Trace/Space: 3/3 mil (0.075/0.075mm)
Surface Finish: HASL, ENIG, ENEPIG, Immersion Silver, OSP, Electrolytic Hard Gold
Copper Weight: 0.5 oz to 6.0 oz
Final Board Thickness: 0.4mm to 5.0mm
These parameters give you the flexibility to design advanced, high-density boards while giving our assembly team a known and predictable foundation to work from. This synergy between our PCB Fabrication and assembly divisions is how we guarantee consistency and accelerate your time-to-market.
Ready to Experience Truly Optimized PCB Fabrication and Assembly
Why waste time and resources navigating these complexities alone? The path to a smoother, faster, and more cost-effective assembly process starts with a design partner who understands the entire journey from the ground up. At Hayner, we build efficiency into every layer of your board.
Contact us today for a free DFM analysis and quote. Let's discuss how we can optimize your next design for flawless assembly.
