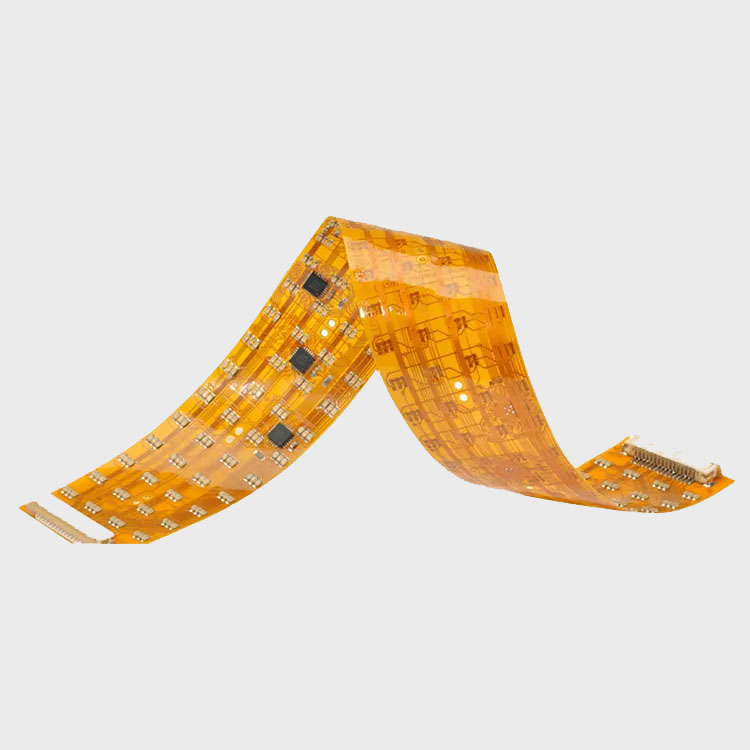

  • Flexible PCBFlexible PCB

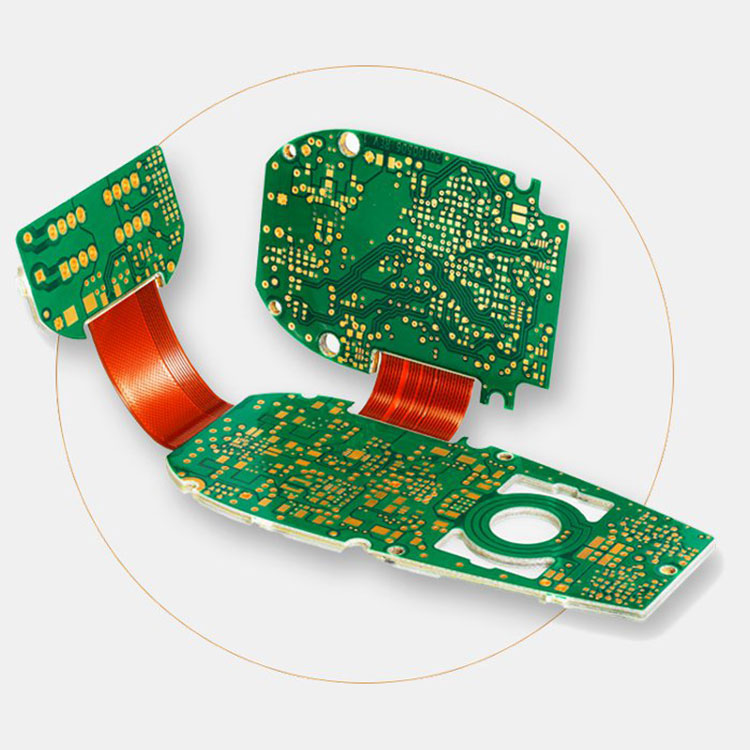

  • Flexible PCBFlexible PCB

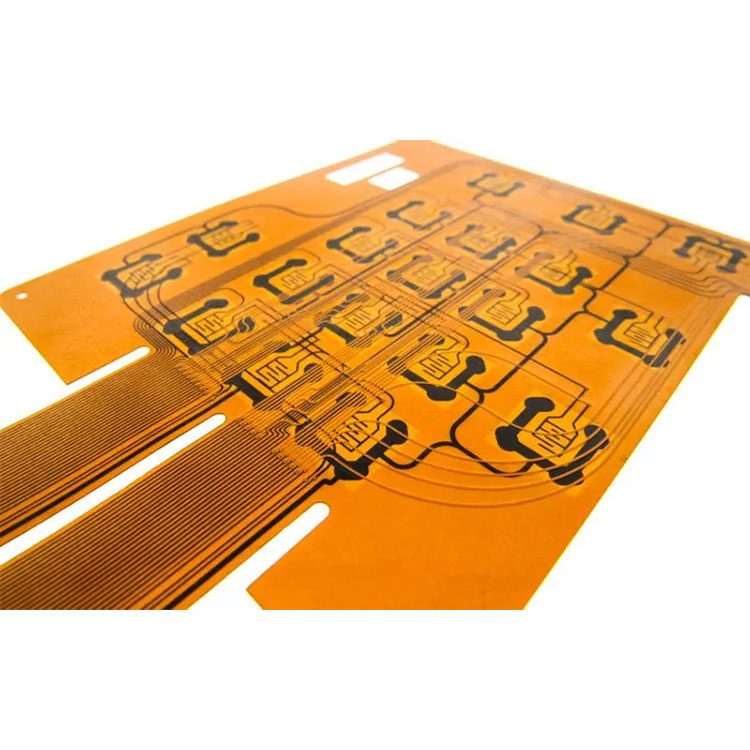

  • Flexible PCBFlexible PCB

Flexible PCB

The Flexible PCB offered by Hayner PCB is designed to meet or exceed industry standards, ensuring consistent performance and long-term reliability. As a trusted supplier, Hayner PCB offers customized solutions to cater to the unique needs of its customers, ensuring seamless integration and optimal performance. With its commitment to quality, innovation, and customer satisfaction, Hayner PCB is the ideal partner for businesses seeking top-quality Flexible PCBs from China.

From prototype to manufacturing, Hayner PCB has you covered for all your flexible PCB needs.

As a leading supplier of Flexible PCB,  our knowledge and experience manufacturing flexible printed circuit boards could provide advanced Flexible PCB according to your exact project specifications.

With a range of capabilities, materials and configurations, we also require no minimum product amounts on orders and always promise a competitive price and unbeatable customer service.

We are standing on a competitive edge in the PCB industry.


Here in Hayner PCB, we could supply many types of Flexible PCBs, according to layer counts, likes ingle-sided flexible PCBs, double-sided flexible PCBs, and multi-layer flexible PCBs. They are all common types of Flexible PCBs.


With our strong engineering, purchasing, production and quality team, we are one of the most trusted Flexible PCB manufacturers in China. Please get in touch with us freely when you have any Flexible PCB quotes.



What is Flexible PCB


A Flex PCB or FPCB is a short words of flexible printed circuit board. It is a patterned arrangement of printed circuitry and components that utilizes flexible based material with or without flexible coverlay.It is a thin, light, and bendable PCB made from FCCL (flex copper-clad laminate) and flexible PCB materials PI (polyimide) or PET (polyester).



Tthe most common types of flexible printed circuit boards being used today,including:

Single-Sided Flexible Circuits

Double-Sided Flexible Circuits

Multi-Layer Flex Circuits

Rigid-Flex Circuits

Advantage of Flexible PCB

Flexible printed circuit boards come with numerous advantages over a rigid PCB. They are used in consumer electronics, wearable electronics, automotive lights, medical equipment, LED displays, lithium batteries, etc.


1. Thin, light, and high-density. Flex PCB reduces electronic products by 40% to 60% of space and 60% to 80% of weight. They meet the trend of thin-line and high-density.

2. Bendable, foldable, and twistable. FPC can move and stretch in 3D space to achieve integration of assembly and connection.

3. Good tear strength, little size changes (within 0.1%) at a high temperature of 300°C



Applications of flexible PCB:


Commercial Electronics – A third of the sales volume for flexible printed circuits come from computer technology – everything from printers, scanners, smart devices, and more.

Automotive – The second largest sector for flex PCBs is in vehicles. As cars begin to include more sensors and electronics for everything from climate control and GPS software to dashboards and rear-view cameras, flex PCBs allow for both space allotments and thermal performance.

Aerospace –  flex PCBs are uniquely suited for aerospace applications such as satellites.

Medical Devices – As medical technology evolves, wearable devices have become a key feature in the past few decades. Flexible printed circuit boards offer greater durability for these devices, as they can mirror shapes found in the body. Hearing aids, vital sensors, and more all use flexible printed circuits to leverage high performance that can stand up to wear and tear.



Flexible PCB Manufacturing and Assembly Capabilities


Specifications

Capability

PCB Material

Flexible PCB(PI,PET,RA copper, ED copper etc.)

Flexible PCB types

Single/double-sided flex PCB

Multilayer flex PCB

Layers

PI FPC: 1-10 layers

PET clear FPC: 1-6 layers

Copper Thickness

25um-3oz

Board Thickness

0.05-0.35mm, regular thickness is 0.2mm

Coverlay

Line to PAD registration, 6mil

Min. Hole Size

0.2mm mechanical drill

4mil laser drill

Min.Line Spacing /

Min.Line Width

1.6mil

1.6mil

Min. Solder Mask Bridge

0.08mm

Max. Production Size

400x510mm

Impedance control

50Ω ±5Ω, 90Ω ±9Ω, 100Ω ±10Ω

Aspect ratio

15:1

Plagging Visa Capability

0.2-0.8mm

PCB Standard

IPC-II Standard

Warp & Twist

0.75%

Certificate

ISO9001.IATF16949.RoSH.UL.
